Hi-Tech Butterfly Valves India Pvt. Ltd.

Minimum Body Cavity : Enhances performance in many services by minimising media retention and process contamination.
Stem : Larger stem diameter. Blowout proof stem.
Ball : Super (mirror) smooth finish.
Anti Static Grounding : Ball stem and body are continuously grounded to eliminate static discharge.
Replaceable Handle : Simplicity and Security.
Body Gasket : PTFE.
Seats : PTFE.
Seat Design (Fire Safe) : Cavity pressure releving (CPR) seats ensure that pressure generated through media expansion when the valve is closed is safely releaved upstream.
Special Options :

Stem Extensions
Special alloy materials are available, i.e. NAB / Brass / Gun Metal / Alloy 20 / 904 L / Hastelloy C

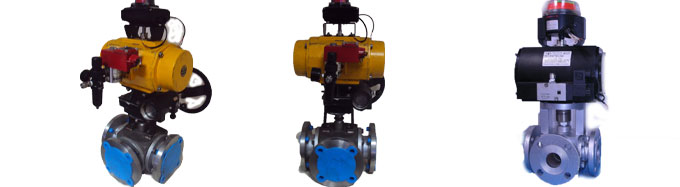

Control ball valves are available
Reduced bore and full bore options are available

Lower torque for ease of operation and reduced actuator cost.
Application : Petrochemical, Oil & Gas production, Refining, Energy, Pulp & Paper and others.
Service : Steam, Chemicals, LPG, Thermal Fluid, Chlorine, Ammonia, Sour Gas.

Valve Type	Size Range	Class
Single Piece	1/2" - 8"	Class 150 / 300
Two Piece	1/2" - 8"	Class 150 / 300
Three Piece	1/2" - 8"	Class 150 / 300
End Connection	Flanged End Raised Face, Butt Weld End, Screwed End, RTJ...etc.
Operation	Lever, Gear Operator, Electrical Actuator, Pneumatic Actuator.

Design Standard	API 6D/ASME B16.34 /ISO 17292
Testing Standard	API 598 / BS 6755 I / BS EN 12266-1
Face To Face	ASME B 16.10/API 6D
End Connection	Flanged End - ASME B 16.5, BS 10 Table, etc. Butt Weld End – ASME B 16.25 Screwed End - ASME 1.20.1

Operator	Size Range
Lever :	2"- 4" - Class 150, 300
Gear Operator :	6" & Above - Class 150, 300

Shell	WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Trim	13% Cr Steel, 304, 304L, 316, 316L, 321, 347, F51, Monel
