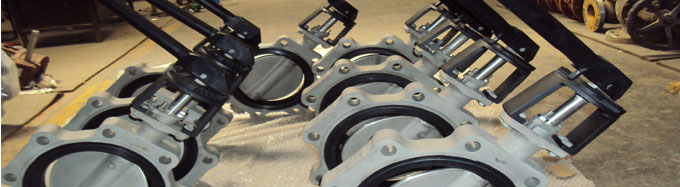

Molded-in resilient seat provides bubble-tight shutoff to 150 psi.
Offered in two body styles: wafer and lug. The lugged body is drilled and tapped for isolation and removal of downstream piping at full rated pressure.
Round, polished disc and hub edge provides 360 degree concentric seating, minimum flow restriction, lower torques and longer seat life.
Thru-stem design provides high strength and positive disc control with standardized end connection for operator interchangeability.
Extended neck allows adequate clearance for flanges and insulation.
Bi-directional, self-adjusting stem seal, located in the upper journal, suitable for vacuum and pressure while also preventing external contamination of the stem area.
Cast-in top mounting plate is an integral part of the body which is standardized to allow direct mounting of all kind of actuators.
Each valve is factory tested to 110 percent of specified pressure rating.

Size Range	Class
2" - 72"	PN 6/PN 10/PN 16/Class 150
Types End connection	Flanged / Lug / Wafer
Operation	Lever, Gear Operator, Electrical Actuator, Pneumatic Actuator.

Design Standard	AWWA C 504, API 609, BS 5155, IS 13095, ASME B 16.34, IS 13095
Testing Standard	API 598 / BS 6755 I / BS EN 12266-1
Face To Face	AWWA C 504, API 609, BS 5155, IS 13095 , ASME B 16.34, IS 13095
End Connection	ANSI B 16.5, BS 10 Table, AWWA C 207, IS 6392, ASME B 16.47, etc.

Operator	Size Range
Lever :	2"- 6" - PN 6/PN 10/PN 16/Class 150
Gear Operator :	6" Above - PN 6/PN 10/PN 16/Class 150

Shell	WCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
Trim	WCB, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastelloy, Inconel, Duplex Stainless Steel
